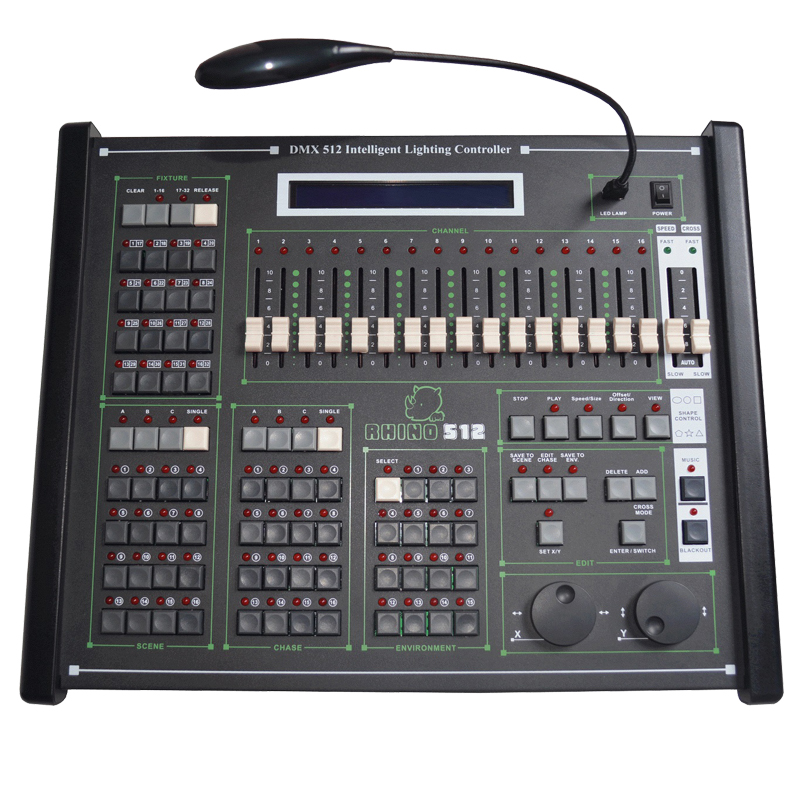

DMX 512/1990 Standard, 512 DMX control channels
4 output with optical isolated , with stand 2000 Vrmms
Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc
Up to 32 scanners may be connected with a maximum of 16 channels each
A large backlight LCD to display operation parameters
16 sliders for channel, 1 slider for speed/fade control
1600 chase steps, 48 chases, up to 99 steps each. Each step contains its speed and cross time, can be set respectively. Trigger mode selectable:
Music synchronously and manual speed.
SPEED fade time range is 0.01s-25.5s andCROSS fade time range is 0s-25.5s and the total time amount of current status will be program step time
48 scanner scenes can be used directly
8 chases, 48 scenes operated at the same time. At most 32 scanners can be selected
The X/Y channels of different scanners can be controlled by modulation wheel
16Bit control for absolutely precise movement
15 environment programsto output the combination , which are composed of different scenes , chases and manual output quickly
The music trigger source can be selected between audio line input or inside microphone
Easy to edit and handle
The Data auto-saves
High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the requirement of different country simultaneously LED lamp connector
Power input: AC88-256V 50/60Hz
Dimension: 498mm × 420mm × 115mm
Net Weight: 6.3kg
