- Specification
1. Features:

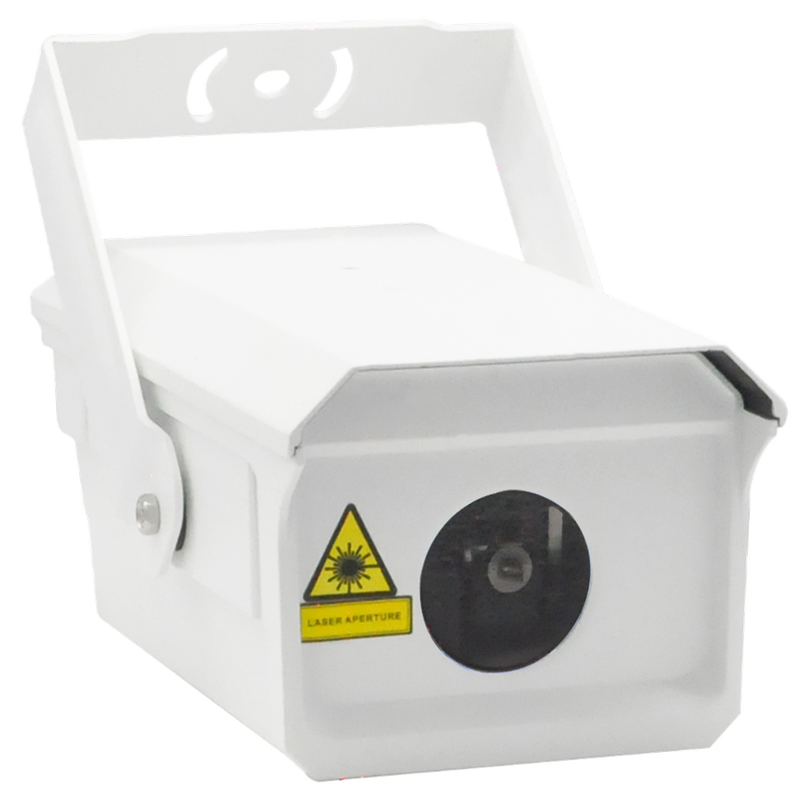

Full-color outdoor animation laser light with IP65 waterproof housing.
Fit for outdoor permanent installation and all weather.
More than 100 kinds of beam and graphics built inside the laser.
The laser can be set in automatic display mode.Also can be set in DMX mode.When in DMX mode,users can use DMX controller to choose the patterns and the effects they prefer to edit their own program show.
If the users buy the laser with ILDA function,they can display it in ILDA mode too.Then they can design text, pattern, LOGO according to customer requirements, and customize a set of programs.
Products can be used for light show, stage design laser effects, scenic theme lighting, outdoor laser advertising, etc.
2. Laser:
2W RGB:500mW@638nm red laser,500mW@520nm green laser,1W@450nm blue laser
3W RGB:700mW@638nm red laser,800mW@520nm green laser,1.5W@450nm blue laser
3.Laser Lifespan:>10000 hours
4. Waterproof Level: IP65
5. Work Environment: outdoor and indoor, -30 °C to 40 °C
6. Scanner:
Normal Model: 20KPPS high-speed optical scanner, ±20° angle scanning
ILDA Model: 30KPPS high-speed optical scanner, ±25° angle scanning
7. Play Mode: DMX512, AUTO, Master/Slave, ILDA (ILDA model)
8. Power Interface: 24mm Waterproof power connector
9. DMX Interface: 18mm Waterproof DMX connector
10. ILDA Interface: RJ45-ILDA Waterproof connector
11. Power Supply: 100~250V, 50/60HZ, 30-60W
12.Size: 125(L)*240(W)*95(H) mm
13.Weight: 2.6Kg
14. Applicable for stage, bar, scenic theme lighting, outdoor laser advertising, etc
