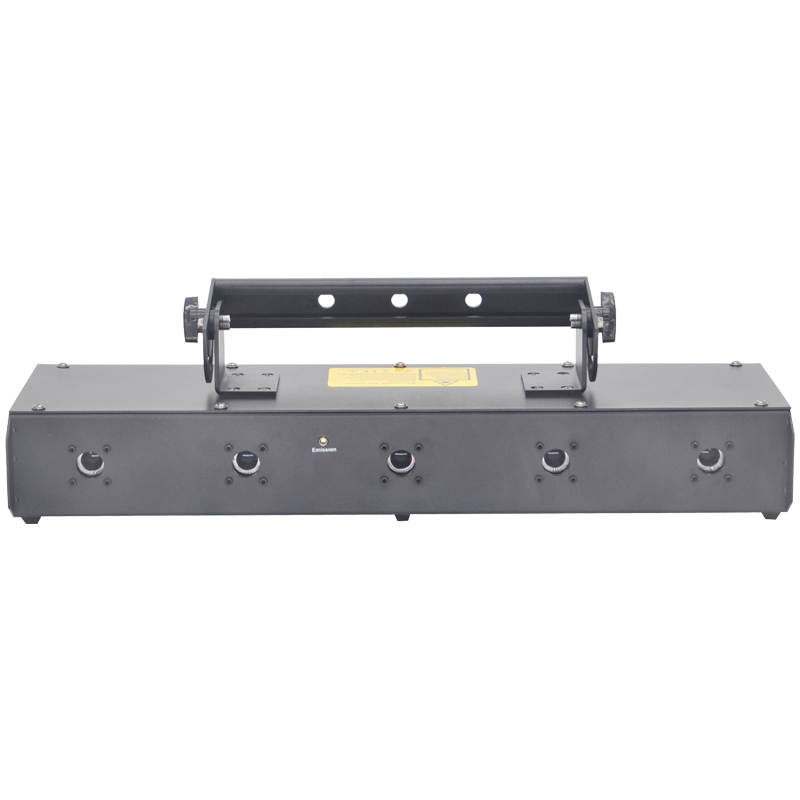

5 Head RGB Laser Array Beam
5 Head RGB Laser Array Beam
  • Specification


1) 5 head RGB laser array, each color has 256 grade dimming, so that can get colorful laser array, and various flowing color changing effects.
2)Ф 15mm outlet spot size, showing high brightness, no risk to the environment.
3) Small beam diameter and divergence. Even projecting to a long distance, the beam spots are still ideal.
4) 5 parallel beam effects, the space between each beam is 10cm. Each beam can be adjusted the X Y axis position so that can get very ideal parallel beams.
5) Dust proof designs.
Play Mode: DMX512 (16 channels), Sound Active, AUTO, Manual, Master/Slave
Safety Configure: Laser key, Laser remote interlock, flying rings bolt
Power Supply: 90~250V, 50/60HZ, 50~100W
Size: 500*210*70mm
Weight: 5.6Kg
Laser: Full diode laser modules, stable quality and long service life.
5 RGB laser beams, each beam specification is:
Laser Power:
5*1.5W:300mW@638nm red laser 300mW@520nm green laser 900mW@450nm blue laser
Beam Diameter: Ф15mm    ,Divergence: <2.5mrad
5*2W: 500mW@638nm red laser 600mW@520nm green laser 1000mW@450nm blue laser
Beam Diameter: Ф15mrad,Divergence: <2.5mrad
